Description
Recommended for other mini versions
ITEM PARAMTERS

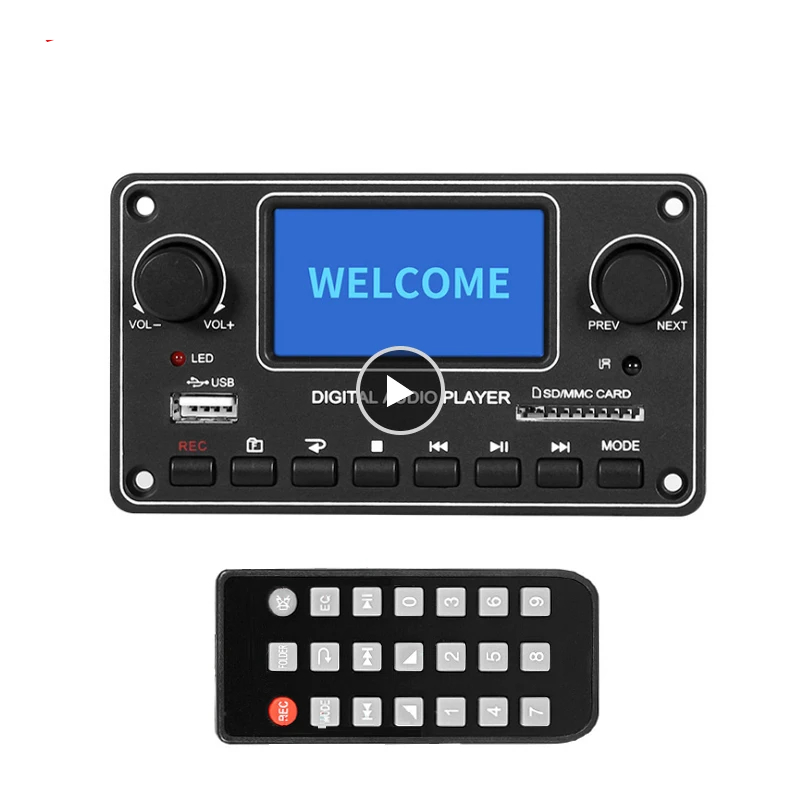

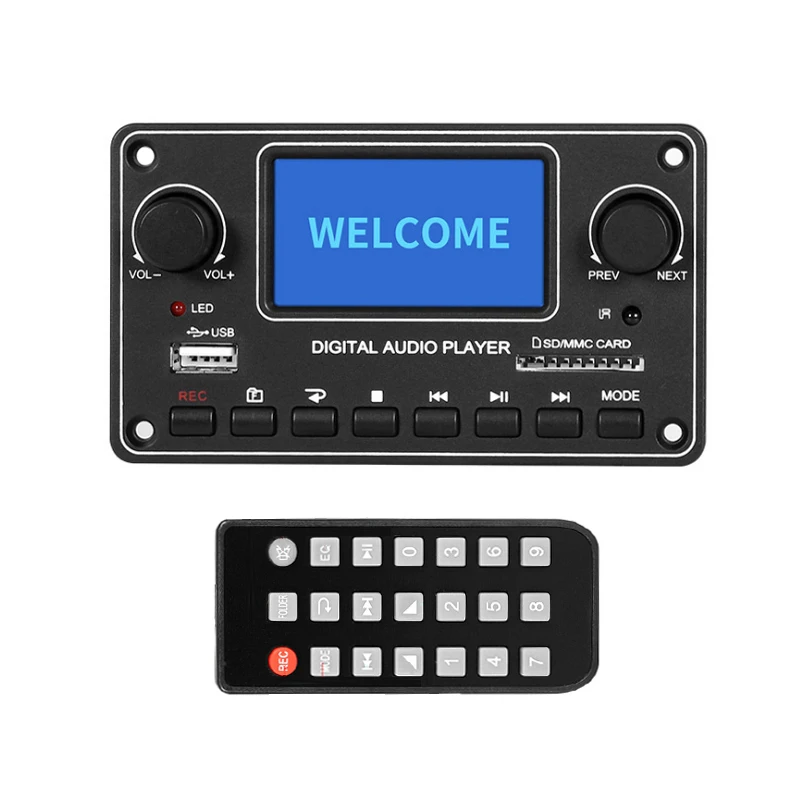

ITEM NAME ： DIGITAL AUDIO PLAYER MODULE
VOLTAGE INPUT ：DC9V-15V (DC12V)
FILE SYSTEM: FAT32
BLUETOOTH NAME : BLUETOOTH
SUPPORT FORMAT:MP3/WMA/WAV/FLAC/ACC
SIGNAL INPUT ：BLUETOOTH,USB,SD,LINE IN
USB: UPTO 64 GB
SD : UPTO 64 GB
RECORD: MP3 FORMAT 48KHZ,STEREO ,128KBPS
DOT MATRIX LCD:128*64 DOTS
SONG NAME/LIST DISPLAY : YES
MICROPHONE:NOT SUPPORTED
SIZE：117*67*22MM
Language settings: English, Arabic, Japanese, Korean, Russian, Simplified Chinese, Traditional Chinese, French, German, Polish, Italian, Greek, Spanish, Turkish, Thai, Portuguese, Lithuanian. English is the default language
Package：1*Mp3 Player
1* PH2.0 2P Cable
1* PH2.0 3P Cable

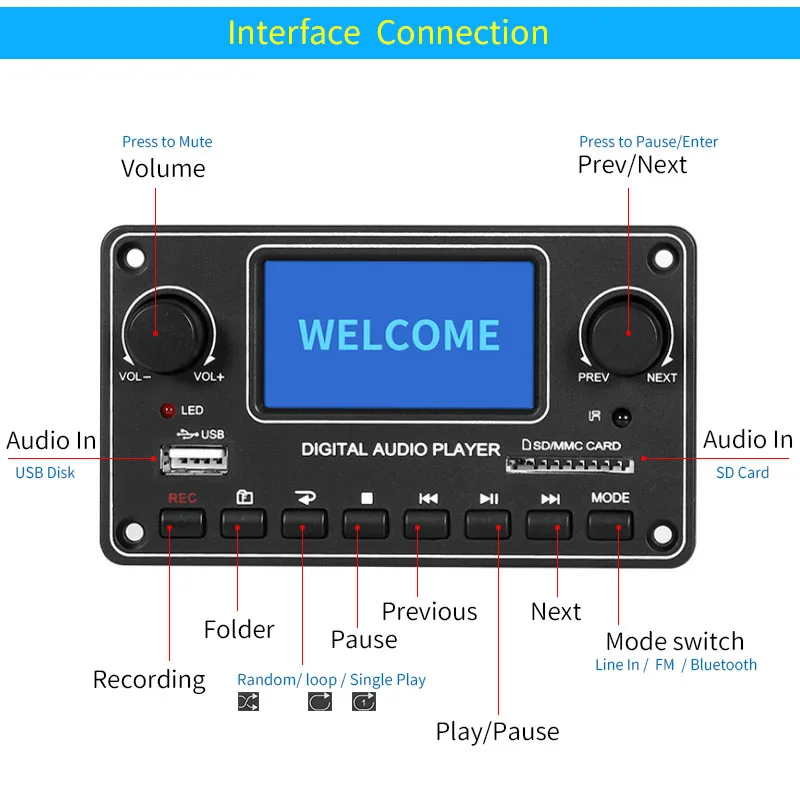

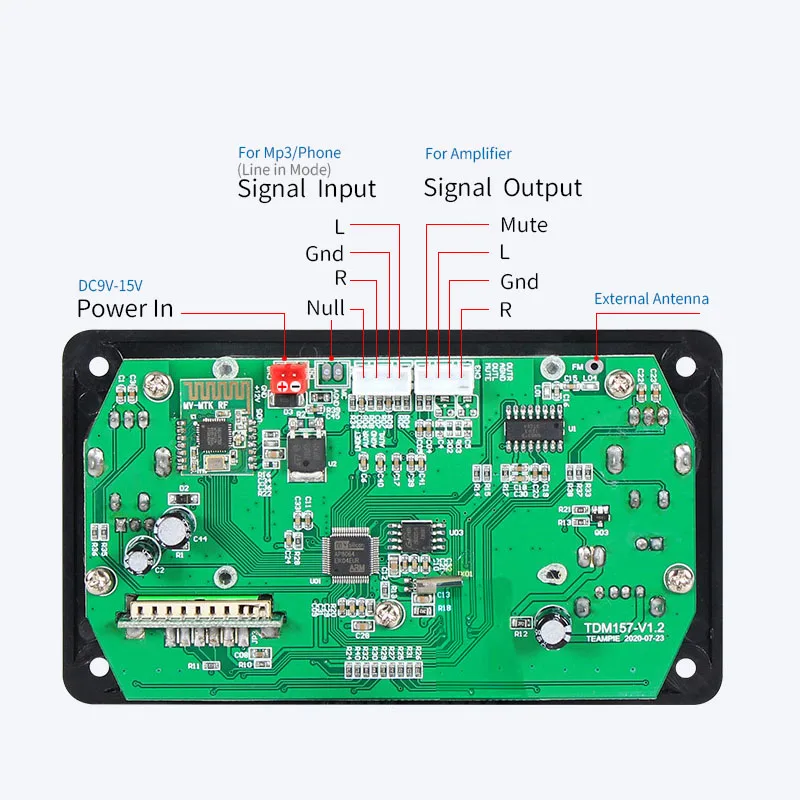

INTERFACE CONNECTION
Function keys, only used in mode. Mode key, just return to the main interface or confirm. It does not support switching signal modes.
(Signal output) Line output to the power amplifier board, please press the mode to select “Line In”

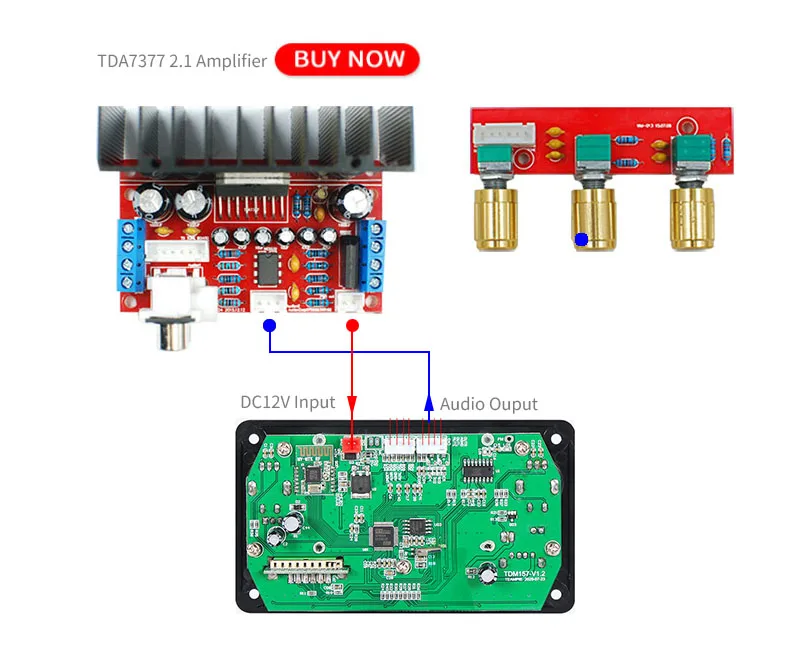

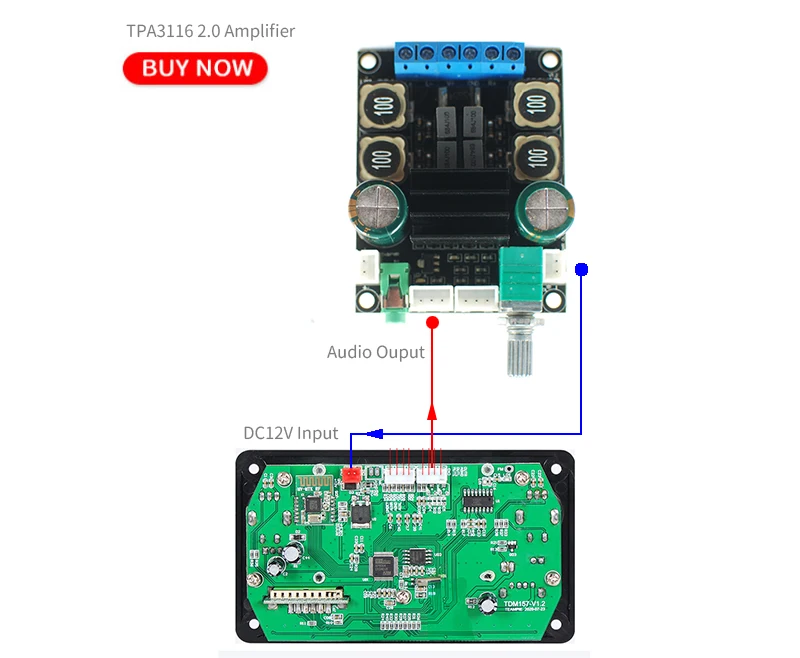

Installation example, for reference only
Installation example, for reference only

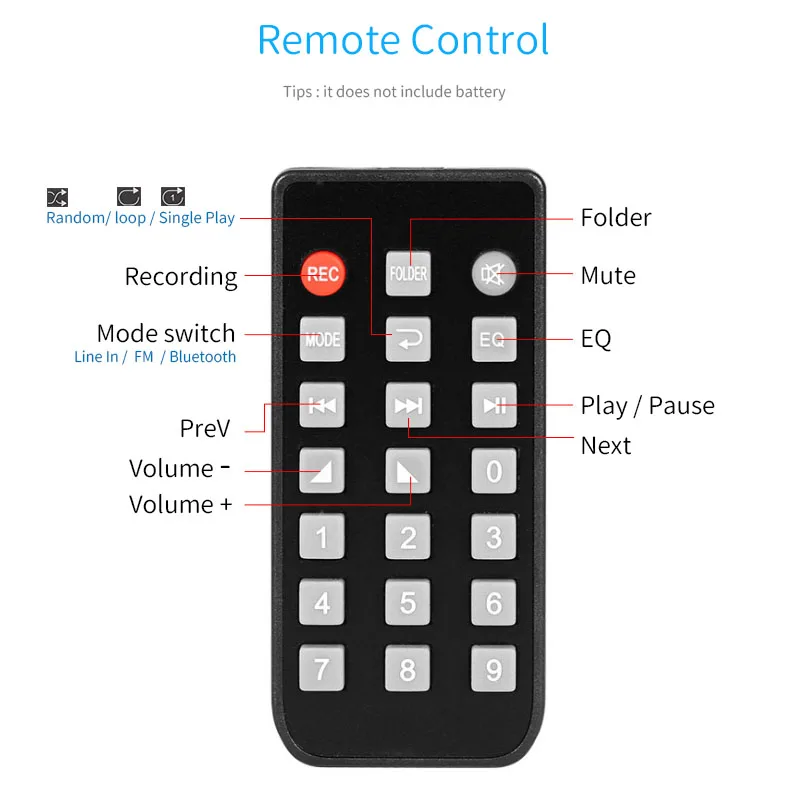

REMOTE CONTROL, BATTERY NOT INCLUDED
Battery specification: CR2025 3V

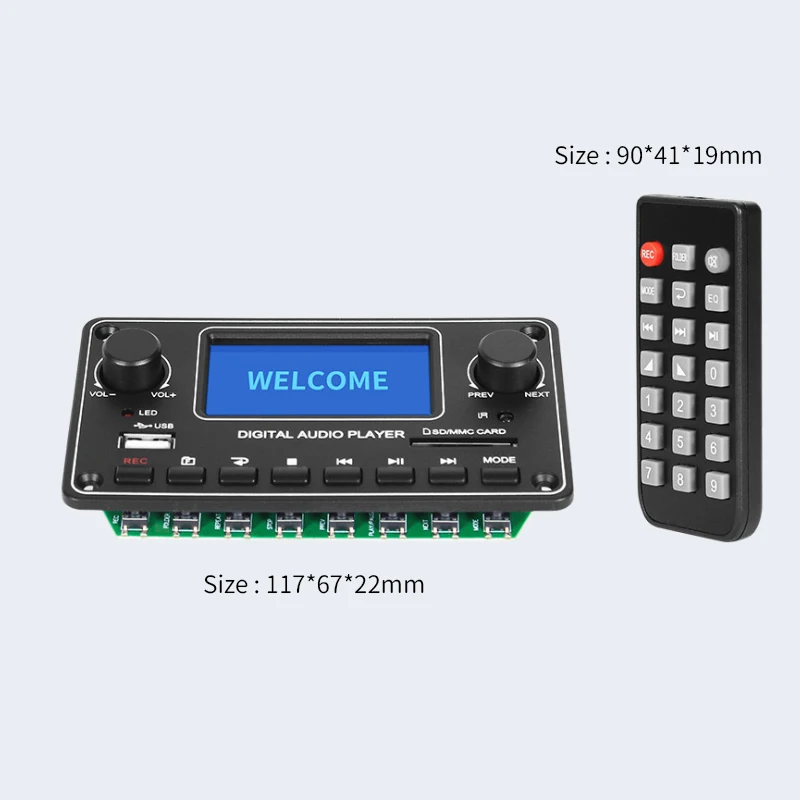

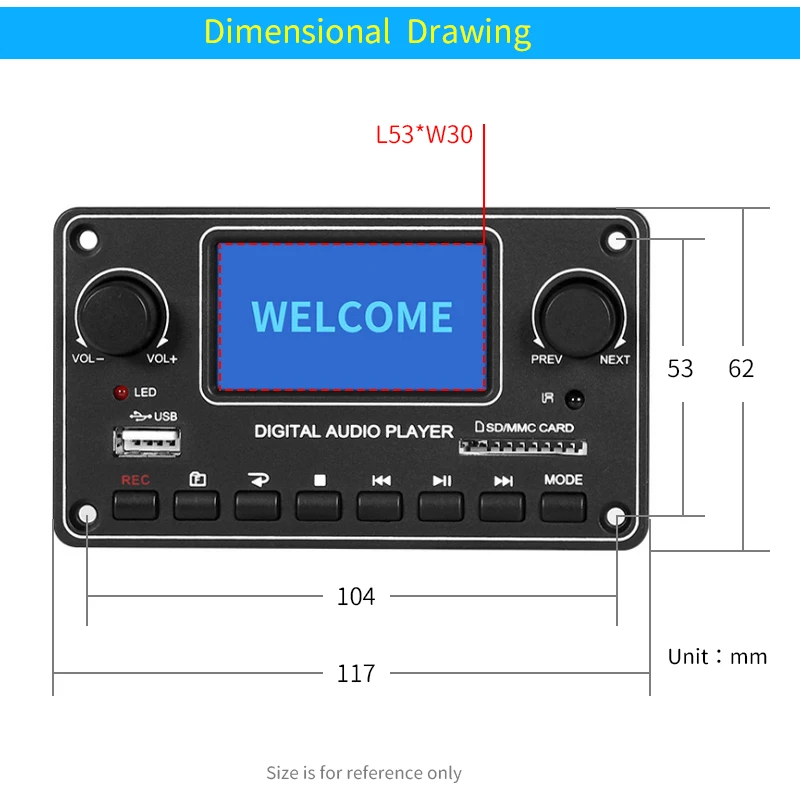

DIMENSIONS, FOR REFERENCE ONLY

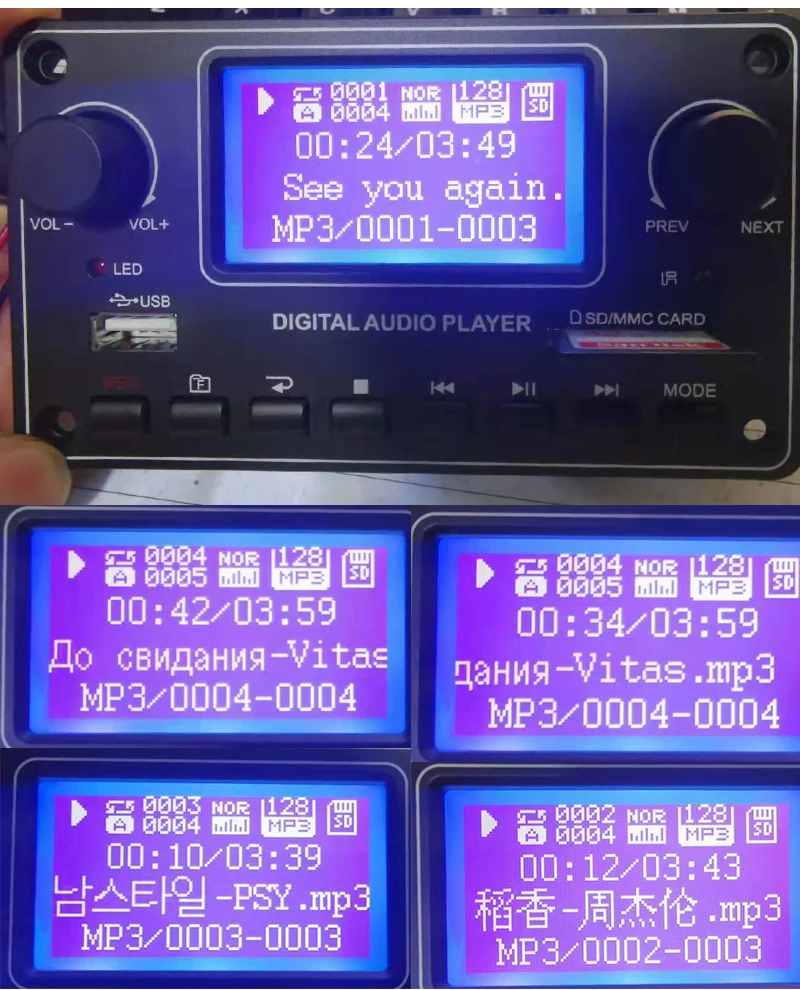

In SD mode, the song title may not be displayed normally, please set the corresponding language. For example: Russian songs, please modify the Russian language in the settings.

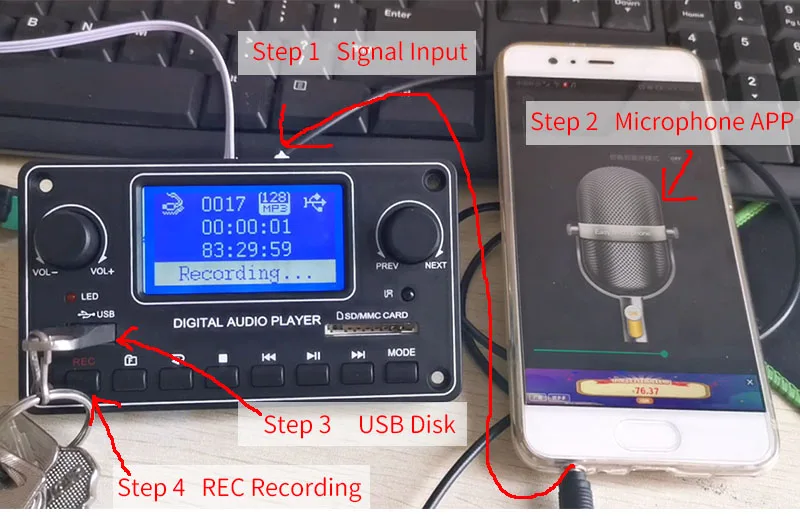

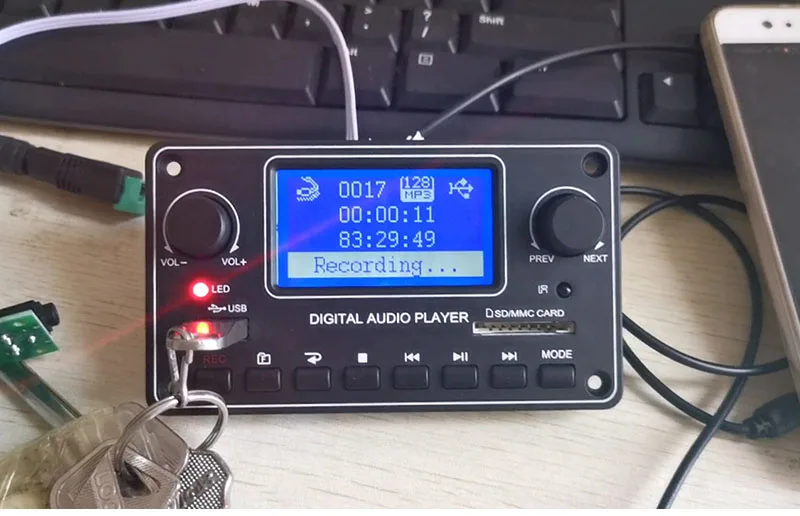

How to record?
This decoder board module only supports the external line input recording function, and a storage device (memory card) must be inserted.
In the first step, the mobile phone is connected to the Signal Input (line in) interface of the decoder board module.
The second step is to open the loudspeaker APP (non-recording software) on the mobile phone.
The third step is to insert a U disk or SD card.
The fourth step, press the “REC” recording Key
The LED is on, it is only a recording signal.

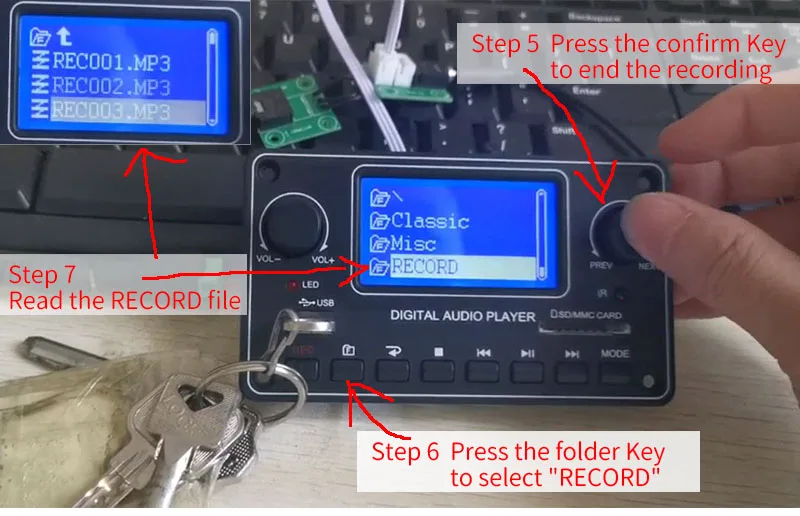

The fifth step, press the confirm Key to end the recording.
The sixth step, press the “folder” Key to select the recording file.
Finally, read the recorded MP3 format file.

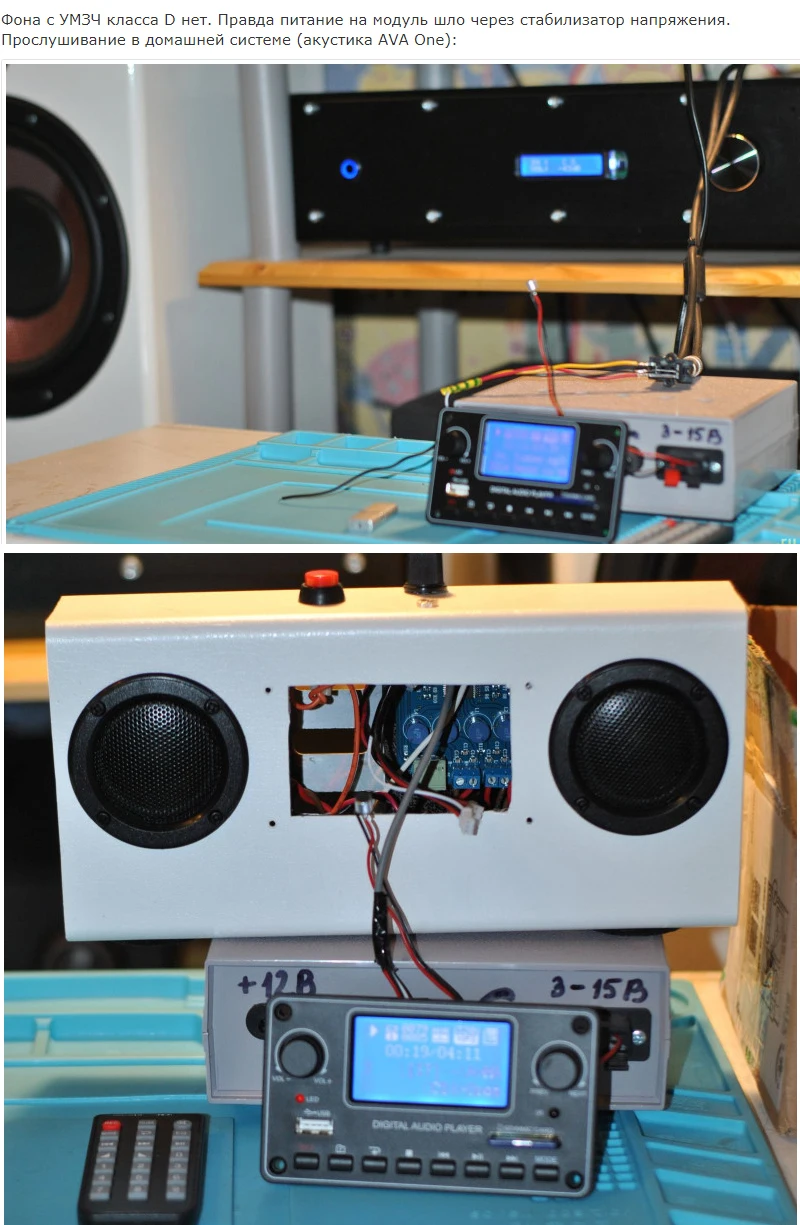

Feedback from Russian buyers

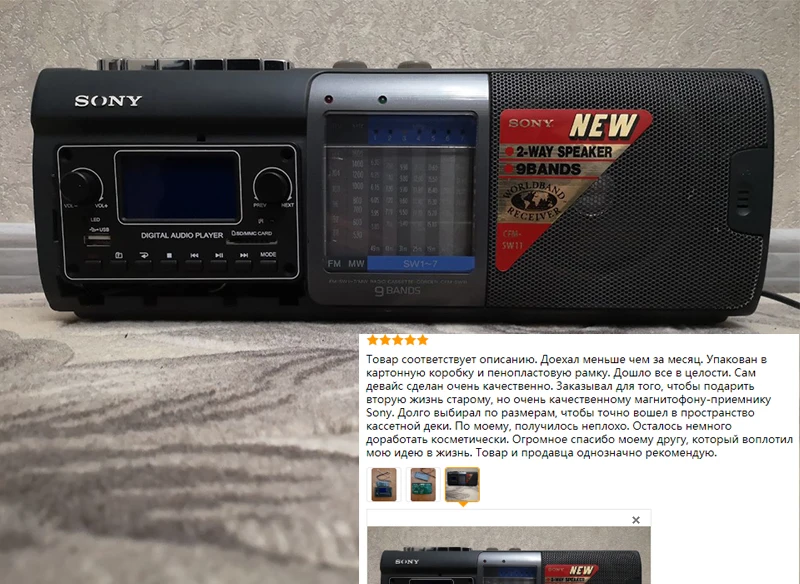

Positive feedback from buyers
