Description

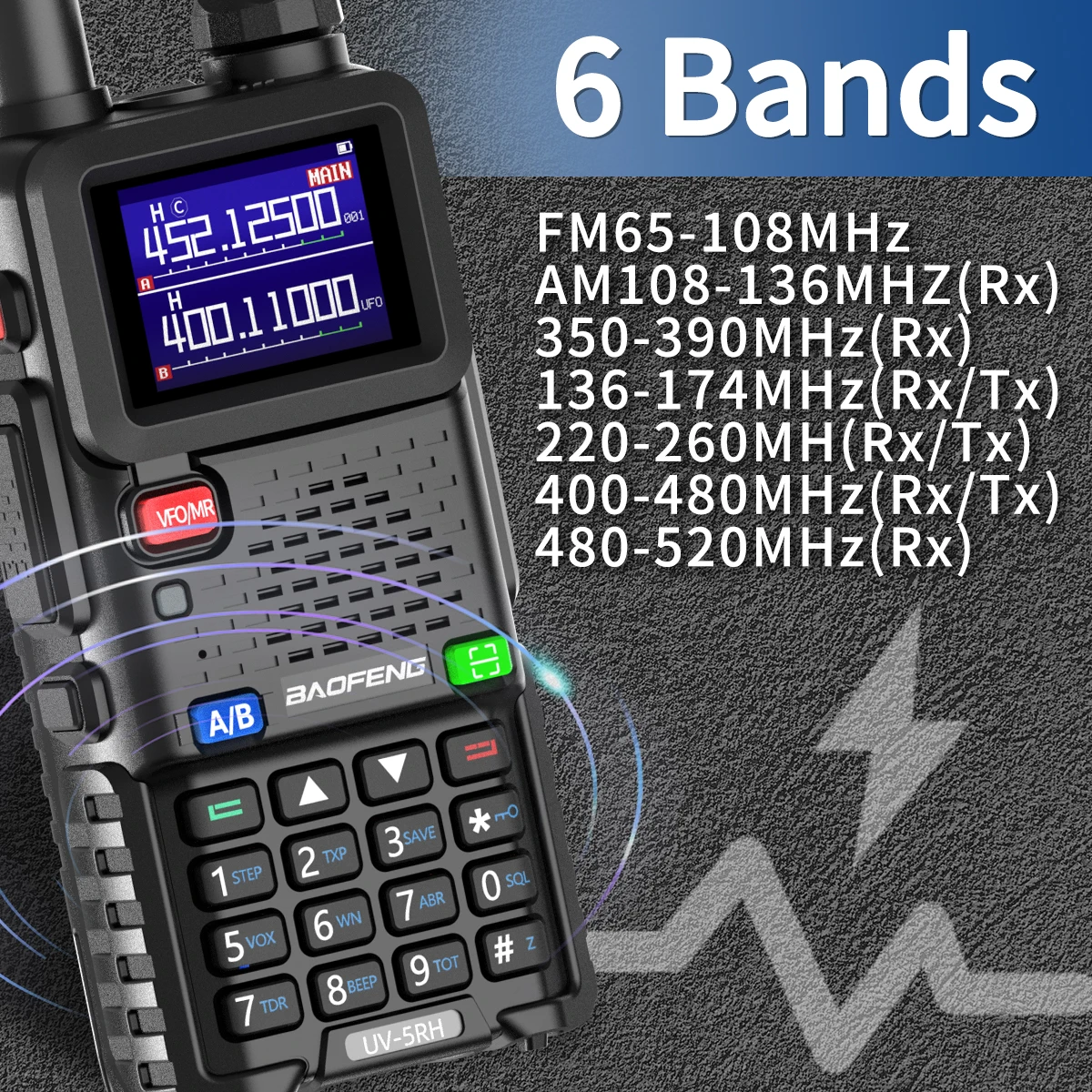

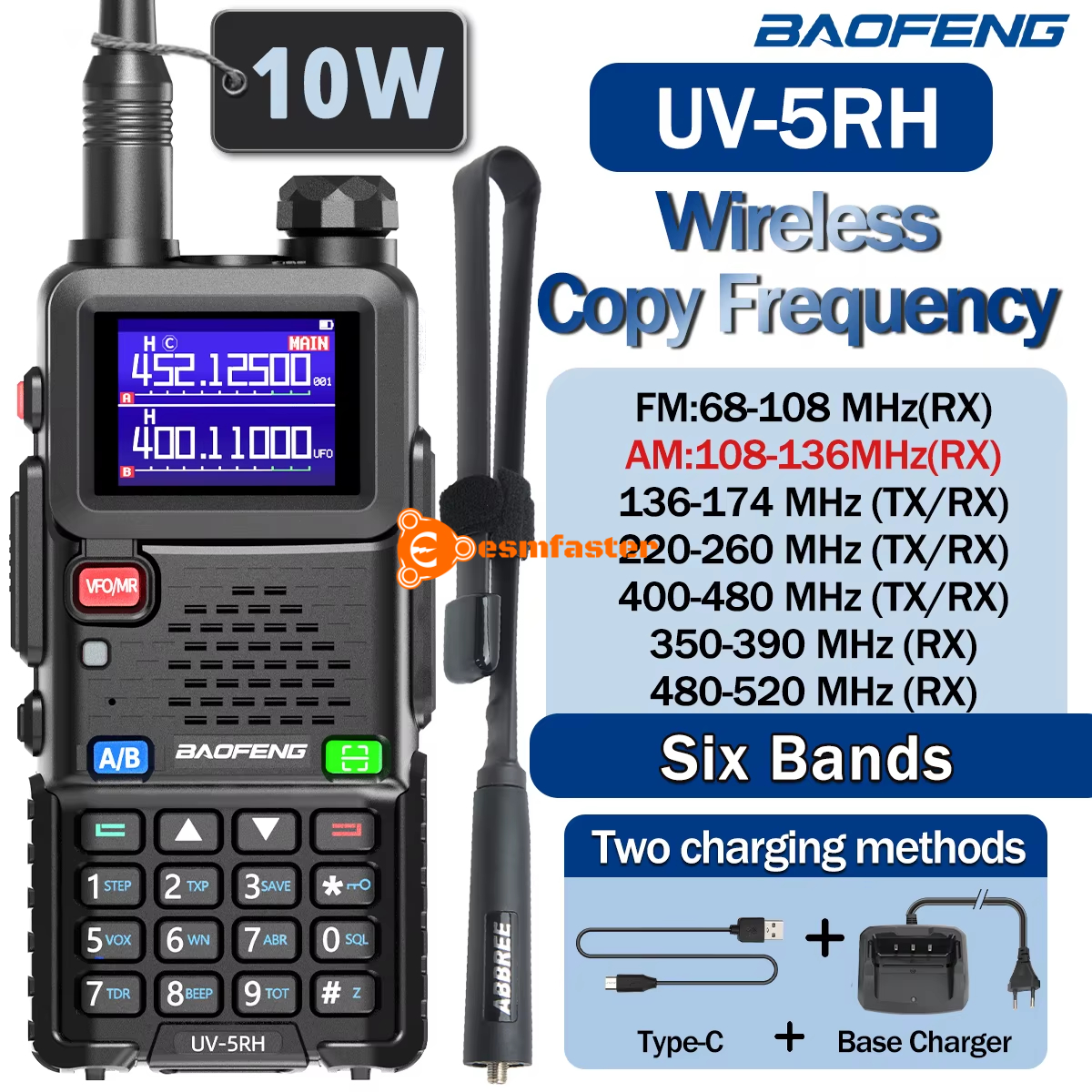

★【6 Band Frequency】
68-108 MHz (Only RX)
350-370 MHz (Only RX)

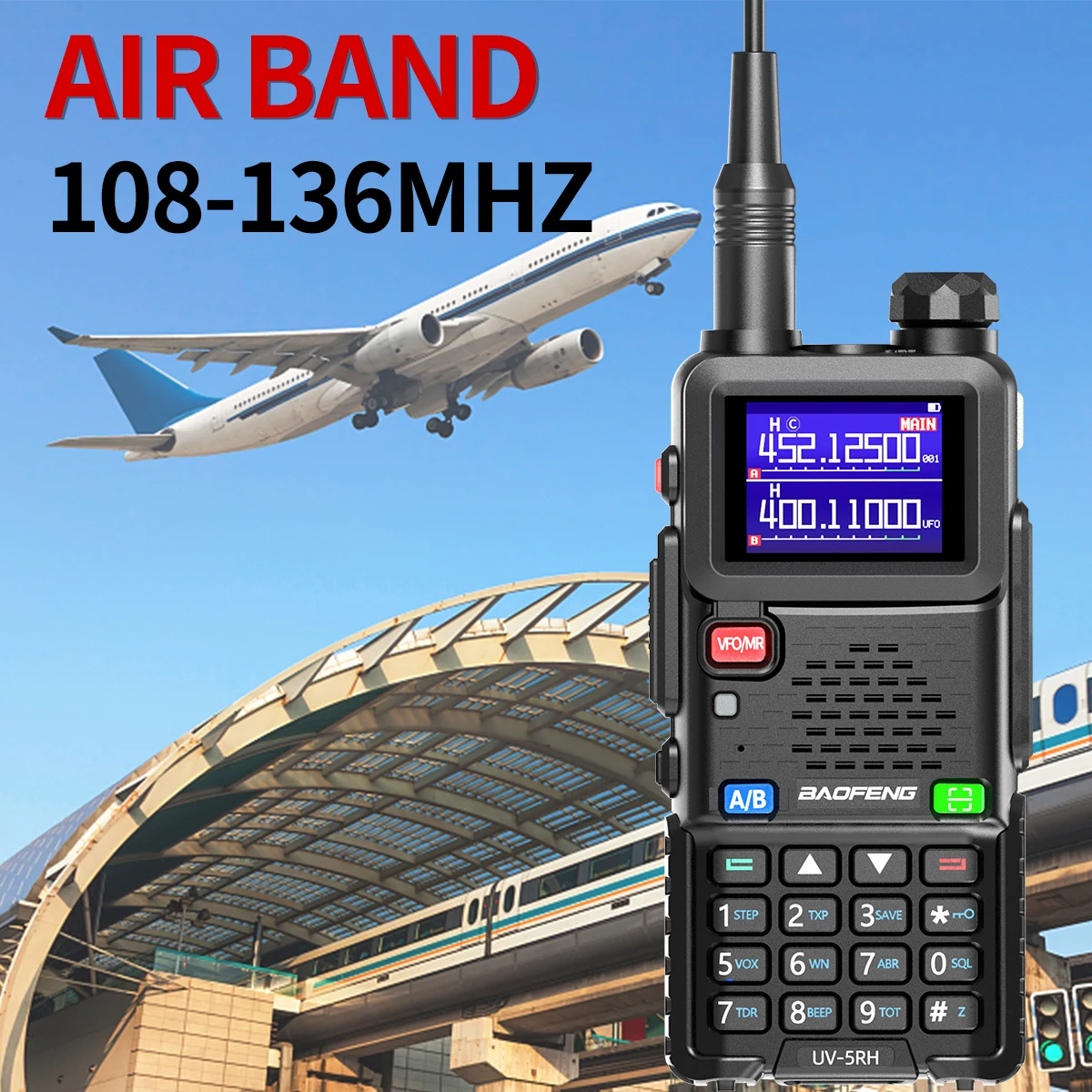

108-136 MHz (Air frequency receiving)
136-174 MHz (TX/RX)
220-260 MHz (TX/RX)
400-480 MHz (TX/RX)
★【Upgraded UV-5R】

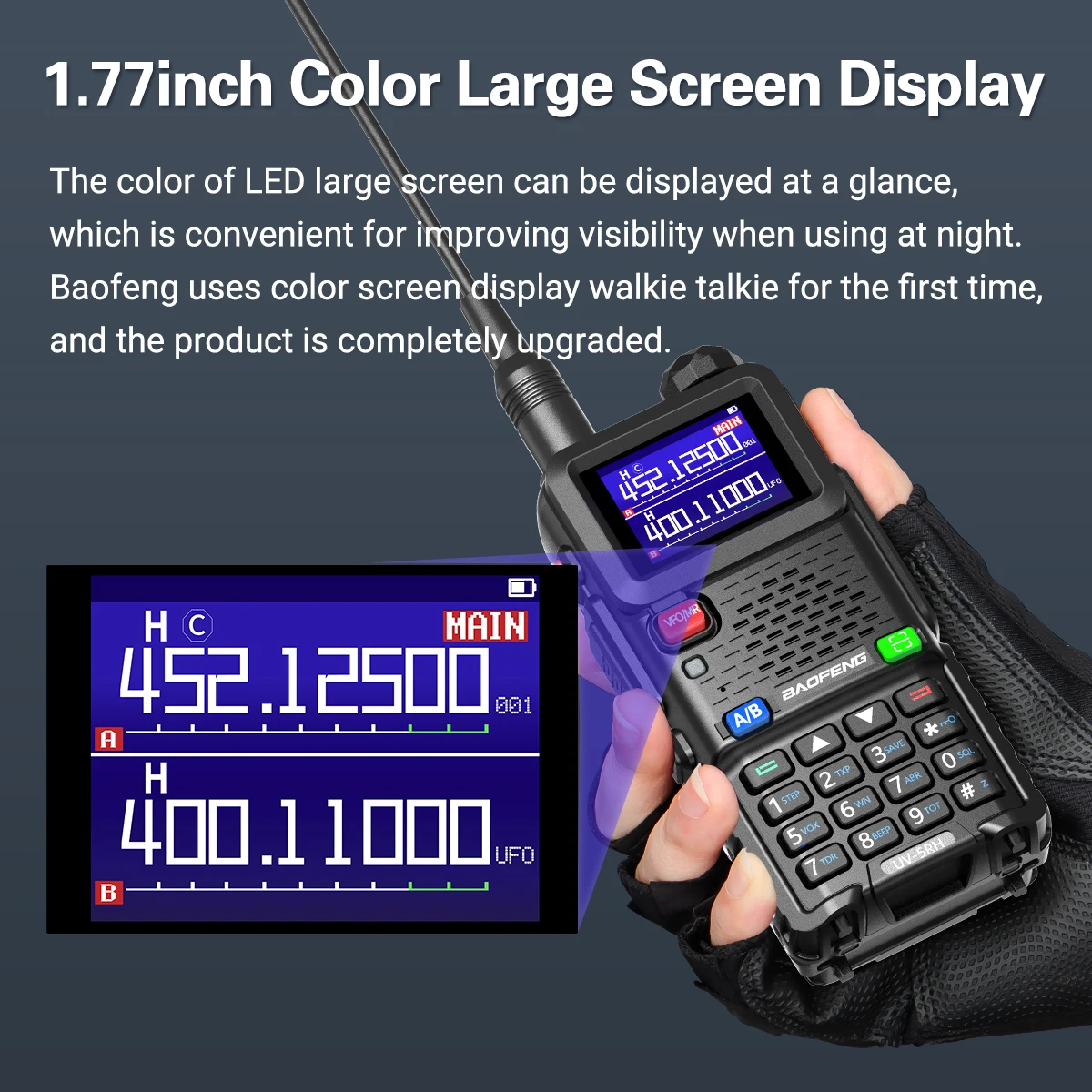

UV-5RH is a professional ham radio, True 10W high power, High/Mid/Low Tri-Power Switchover. Up to 999channels.1.77 inch color screen.

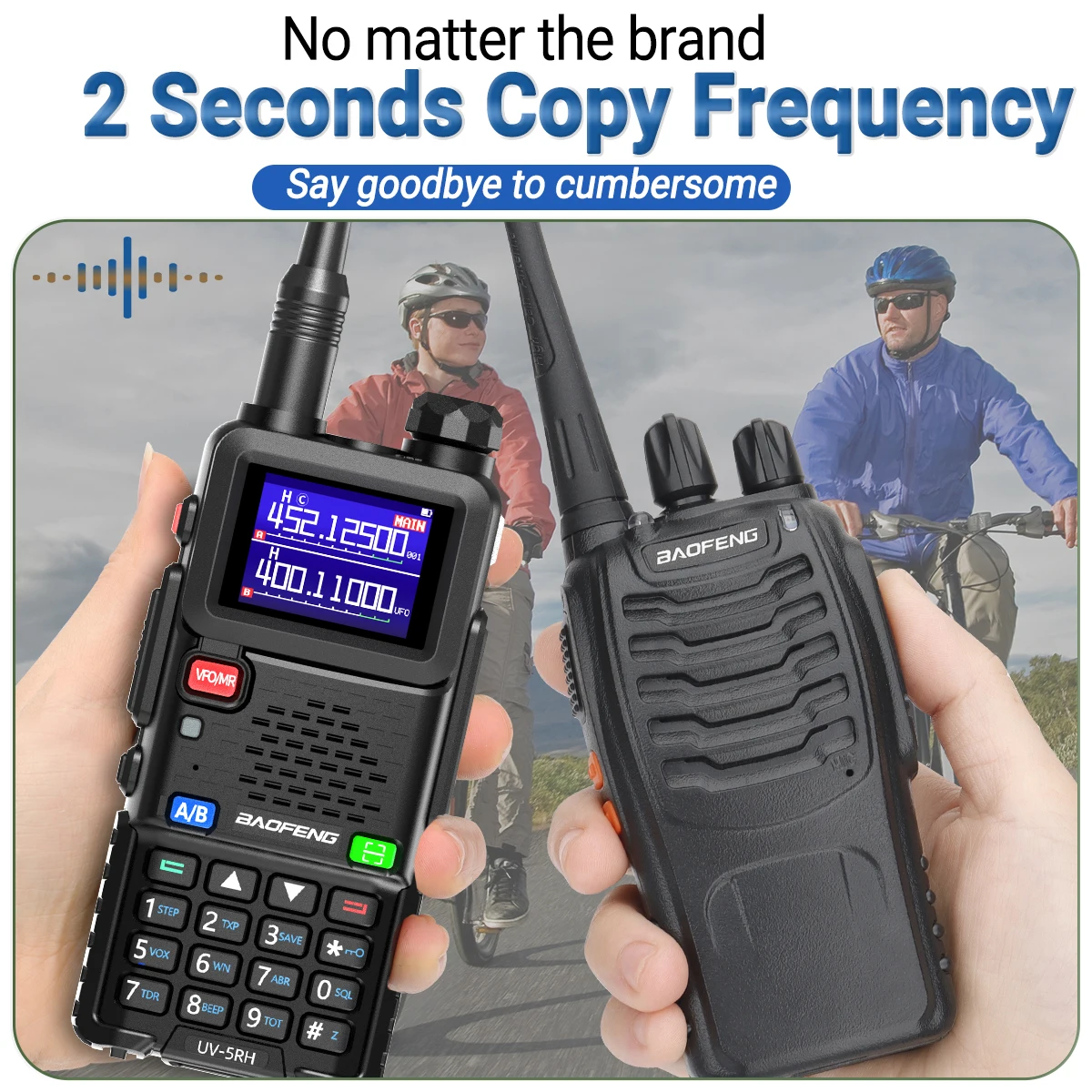

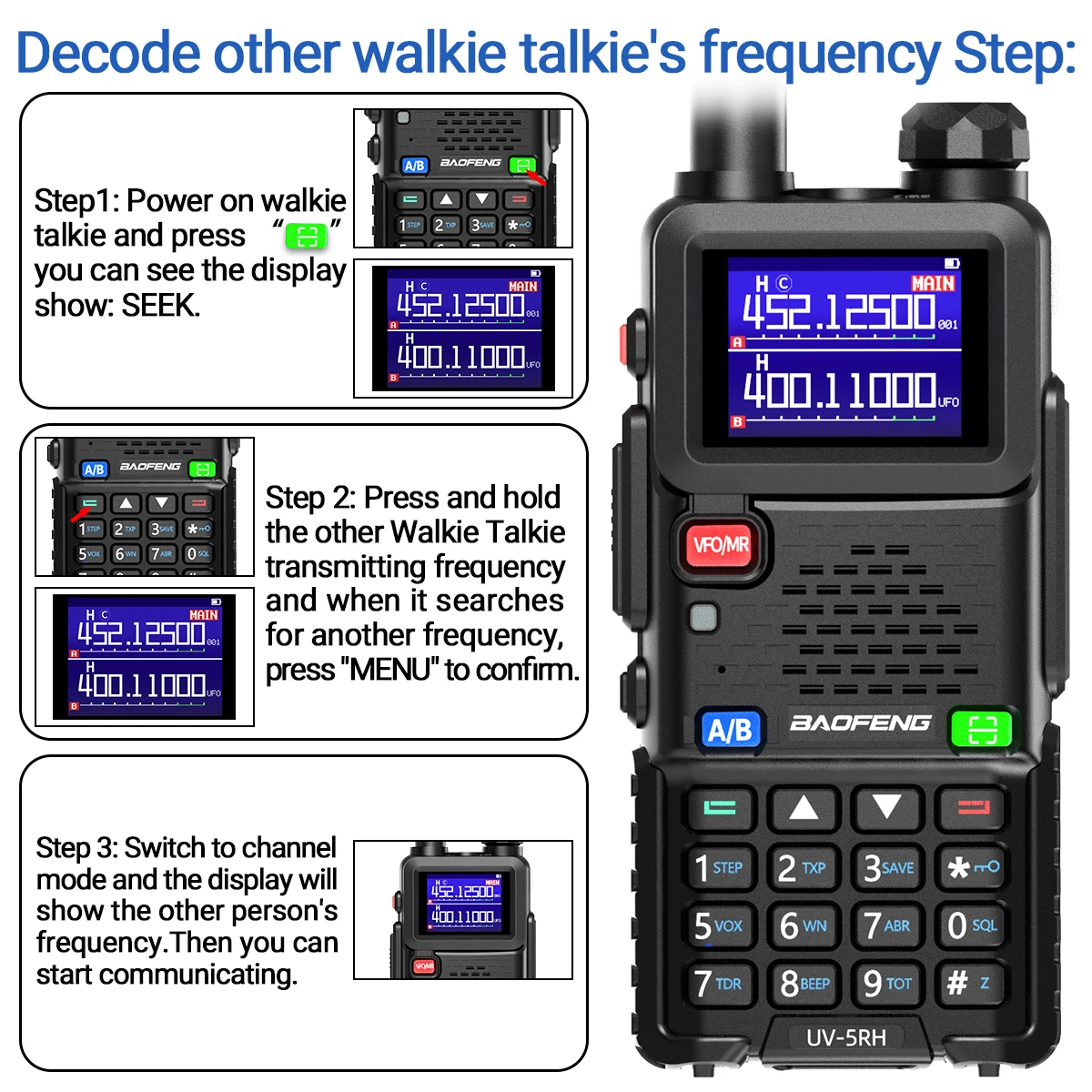

★【Wireless Copy Frequency 】
Press the EXIT button to enter the“FQSCAN”interface. Press EXIT again and the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.

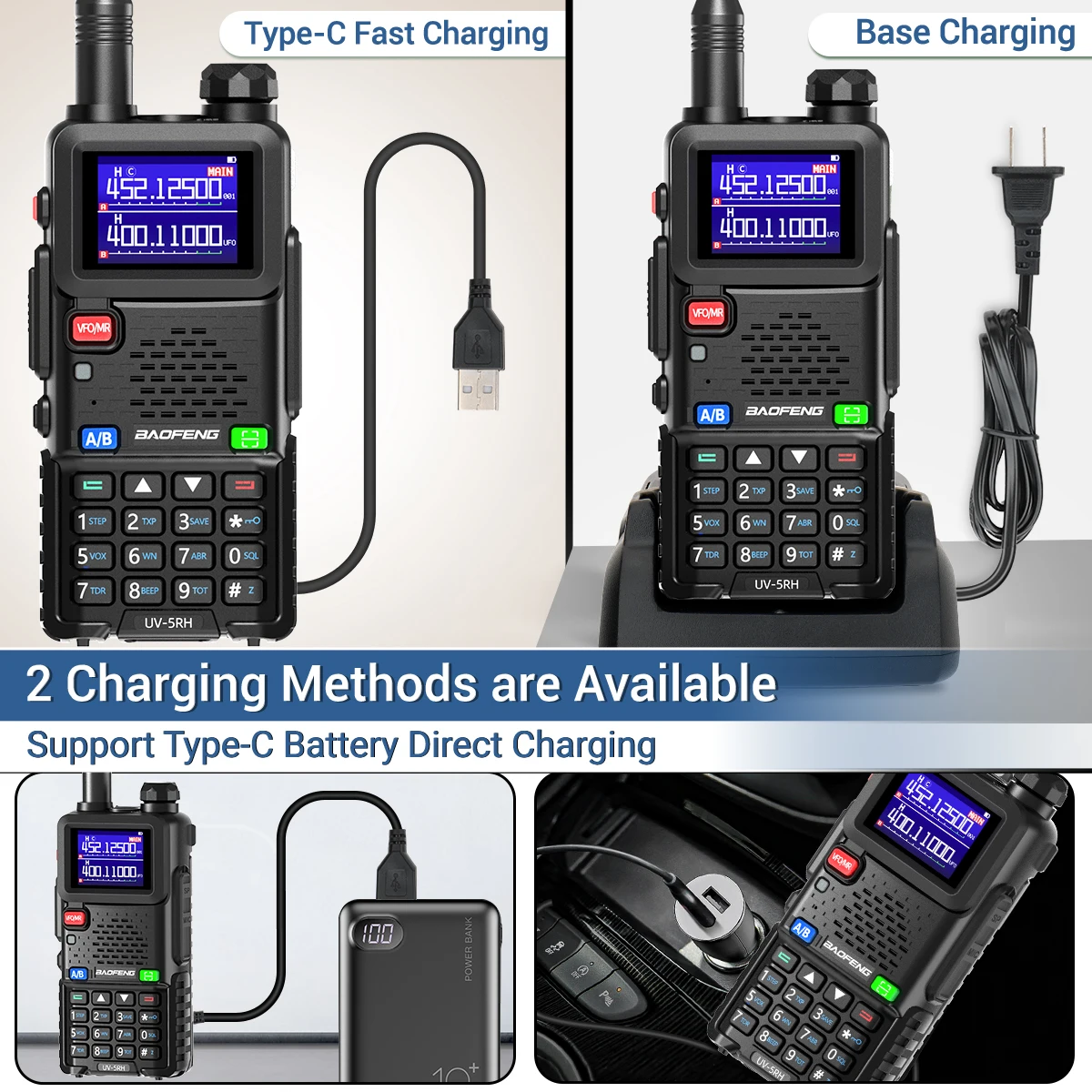

★ 【Type-C USB Charging 】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

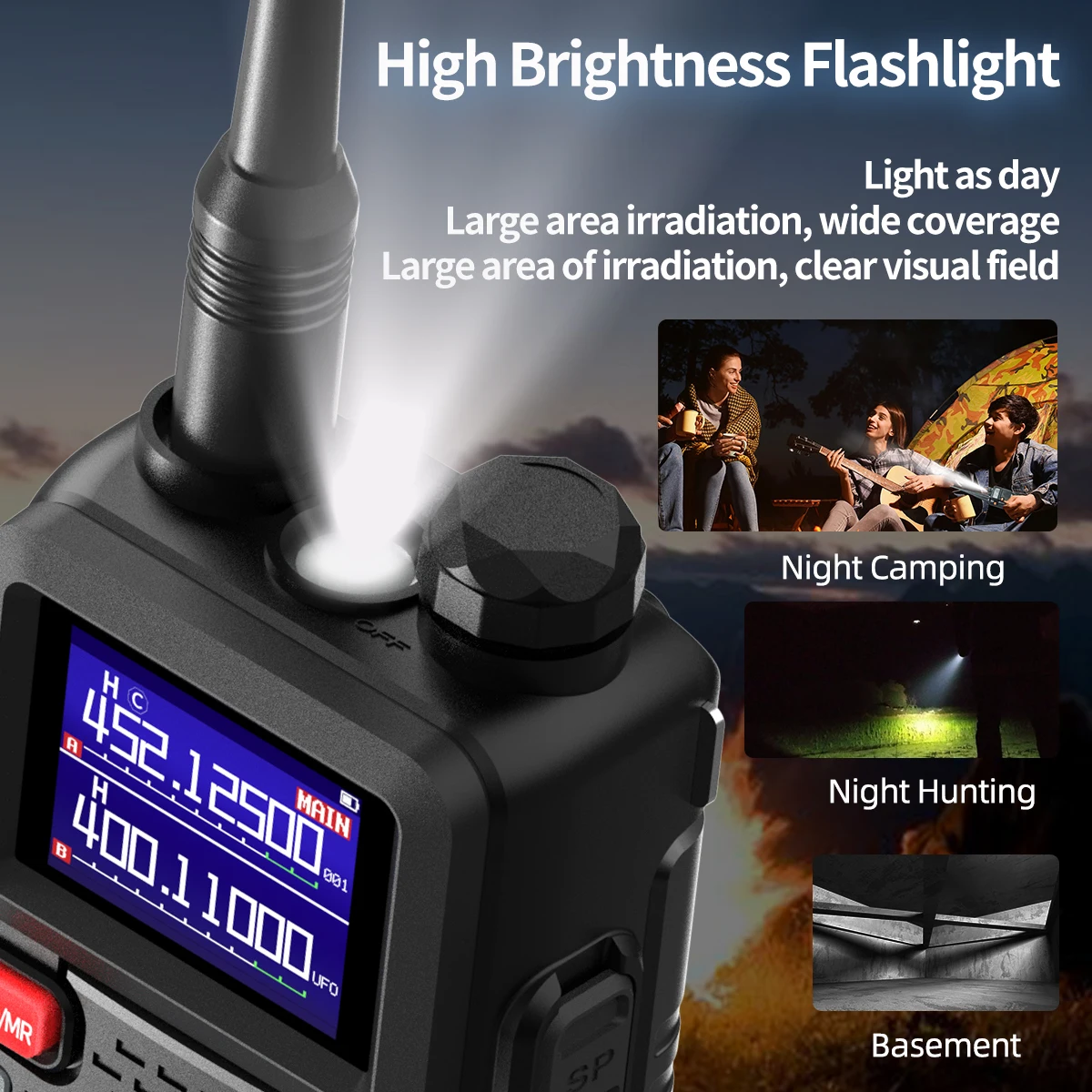

★【LED Flashlight】
LED spotlight, life emergency helper, Powerful, it can also change into a flashlight in seconds, lighting up your dark night anytime, anywhere.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
|
All of our items are Brand New |
||
|
Model |
Baofeng UV-5RH |
|
|
Dual Band/Dual Display/Dual Standby |
A/B band independent operation(UVUUVV) |
|
|
128groups channels storage |
Short cut menu operation mode |
|
|
VFO&Memory channels scan |
EmergencyAlarm |
|
|
Time-out Timer(TOT) |
0~9grades VOX selectable |
|
|
PTT&ANIID |
FM radio and 25 stations storage |
|
|
Voice companding |
50CTCSS/104DCS |
|
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
DTMF function |
OFFSET function |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOXfunction |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer(TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Ledtorch |
Yes |
|
|

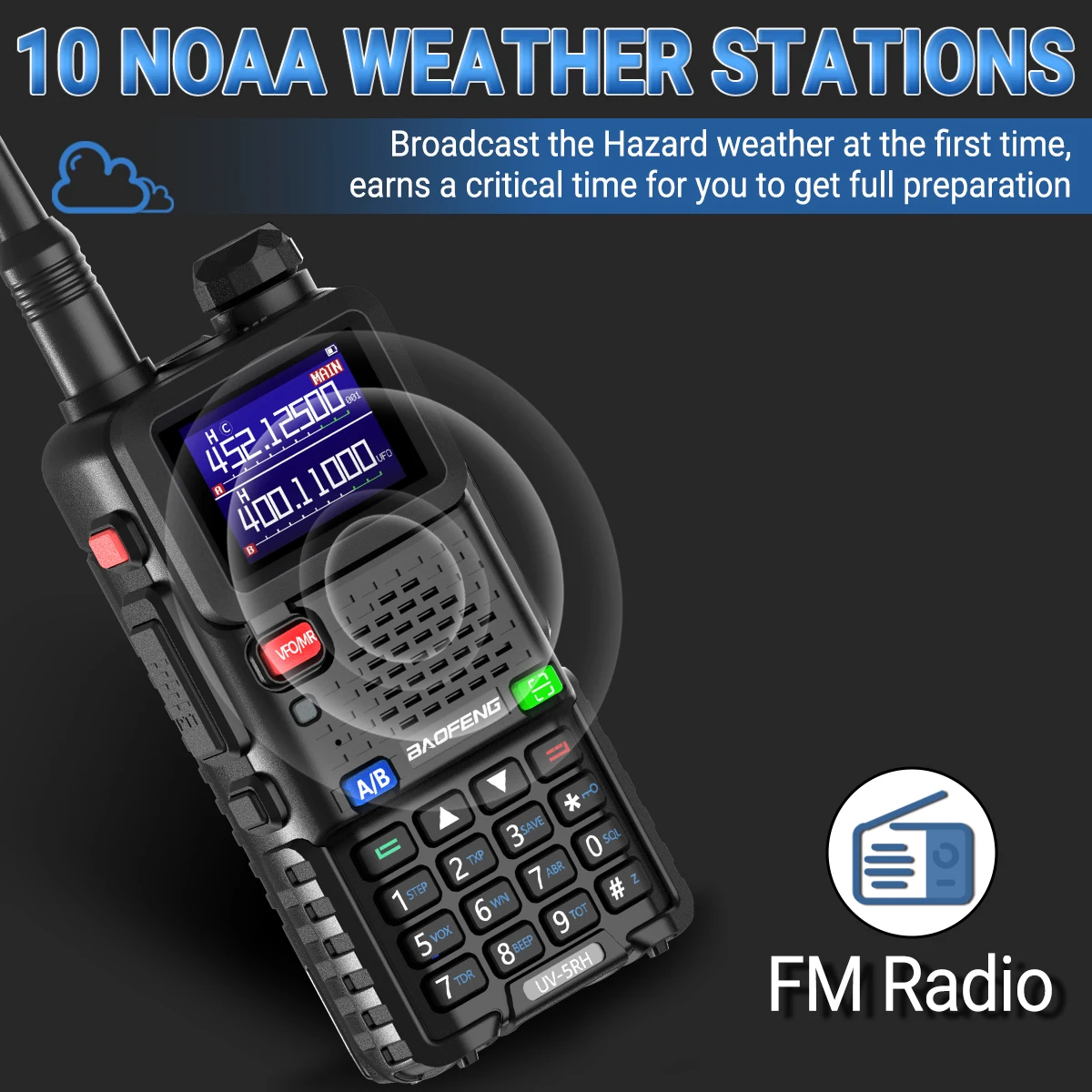

FM radio |
Yes |
|
|
Wire clone function |
Yes |
|
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/MID/Low TXpower selectable |
Yes |
|
|
ROGERSET |
YesYes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Rated Voltage |
7.4VDC±10% |
|
|
Output power |
<=5W |
|
|
Battery type |
Li-ionbattery |
|
|
Battery capacity |
2500mAh |
|
|
Working temperature |
-20~+50°C |
|
|
Antenna Impedance |
50ohm |
|
|
Weight |
300g |
|
|

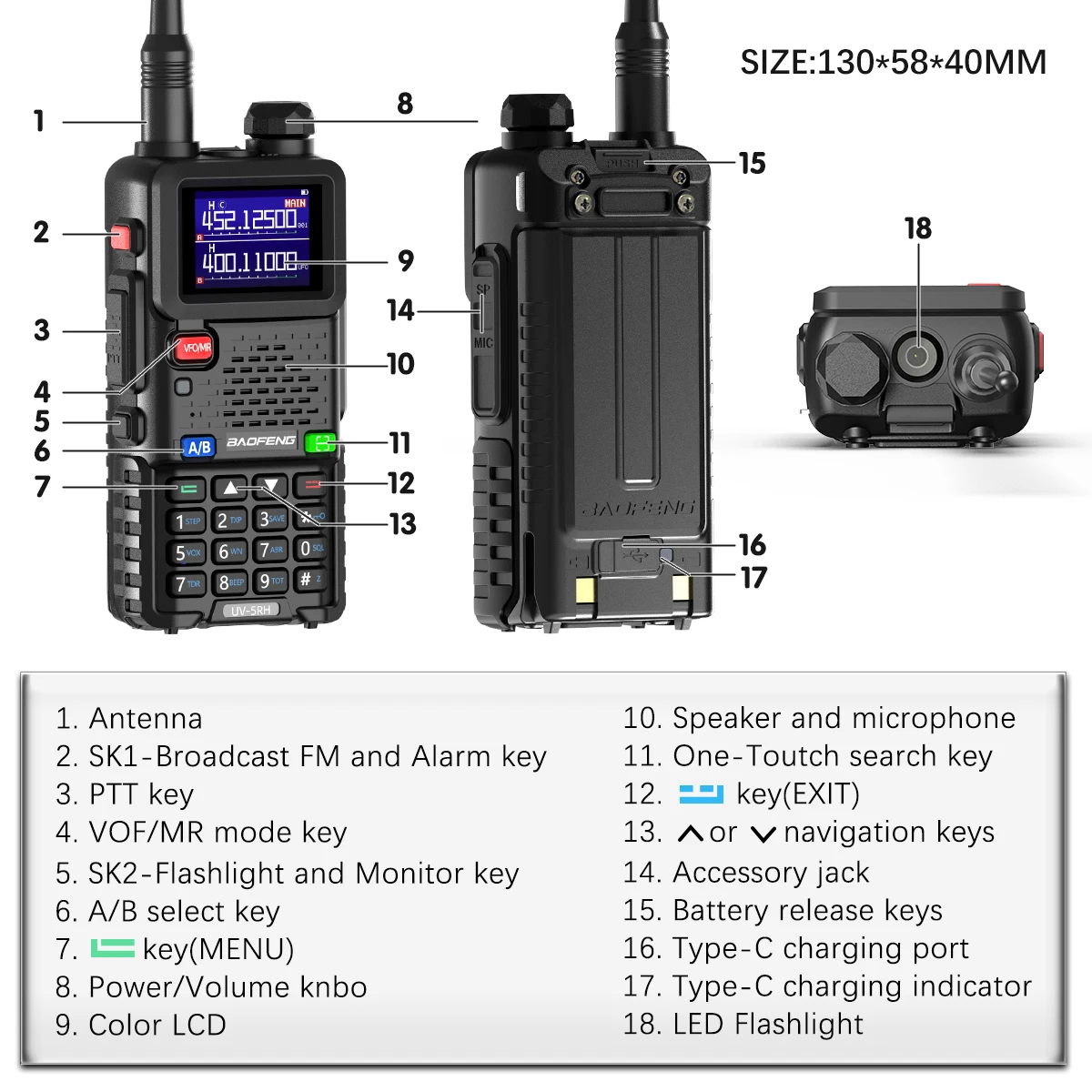

Dimension(LXWXH) |
58X40X130mm(NotAntenna) |
|
|
Frequency stability |
±2.5ppm |
|
|
Carierwave tolerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Max frequency deviation |
<5kHz(Wide) |
|
|
Modulation character |
6dB perfold frequency patch |
|
|
Emission current |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
<0.16µV(12dBSINAD) |
|
|
Silent sensitivity |
<0.2µV |
|
|
Intermediation Distortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacent channel selectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|

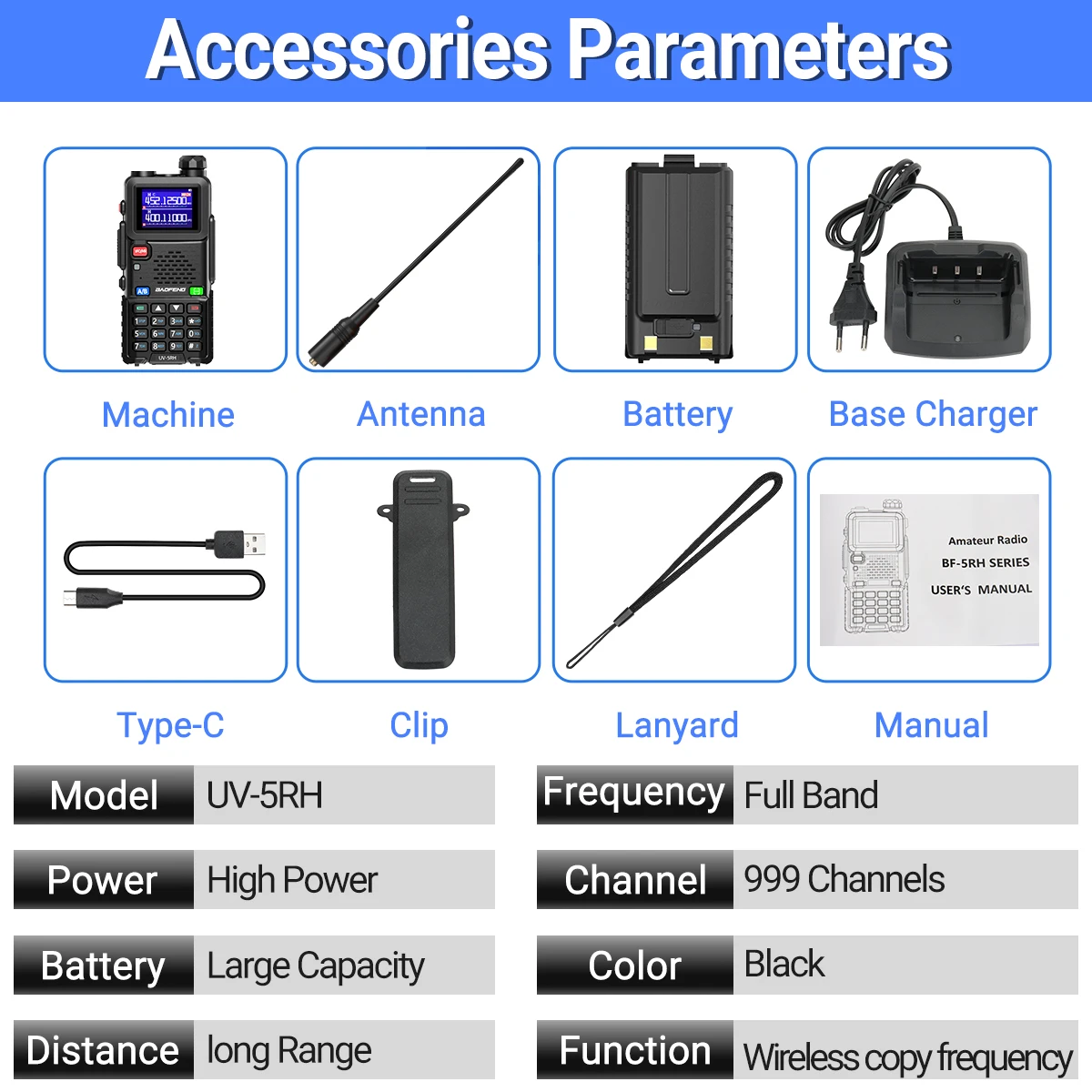

Package Include:
1X Portable radio

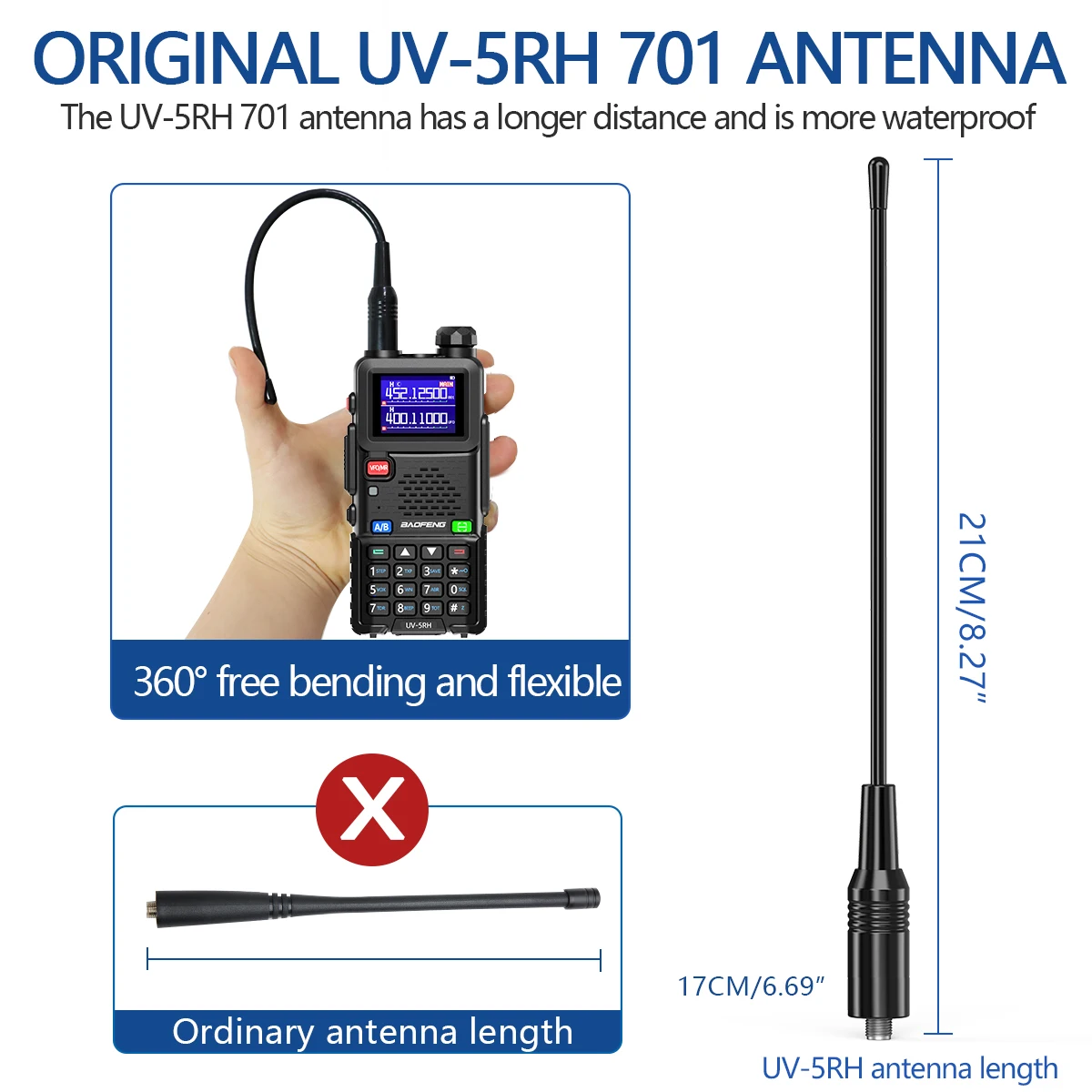

1X Antenna
1 X USB
1X Li-ion battery pac
1X Beltclip
1X Thesling
1X User'smanual
