10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor

10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor

1.00 $21 items sold

press here to conctact supplier
100 ohm
100 ohm
100K Ohm
100K Ohm
10K Ohm
10K Ohm
1K Ohm
1K Ohm
1M Ohm
1M Ohm
2.2K Ohm
2.2K Ohm
200 Ohm
200 Ohm
200K Ohm
200K Ohm
20K Ohm
20K Ohm
2K Ohm
2K Ohm
3.3K Ohm
3.3K Ohm
3K Ohm
3K Ohm
500 Ohm
500 Ohm
500K Ohm
500K Ohm
50K Ohm
50K Ohm
5K Ohm
5K Ohm
Clear
Add to wishlist
Compare
SKU: 1005006401430509 Category:
Spread the love


Description

Spread the love

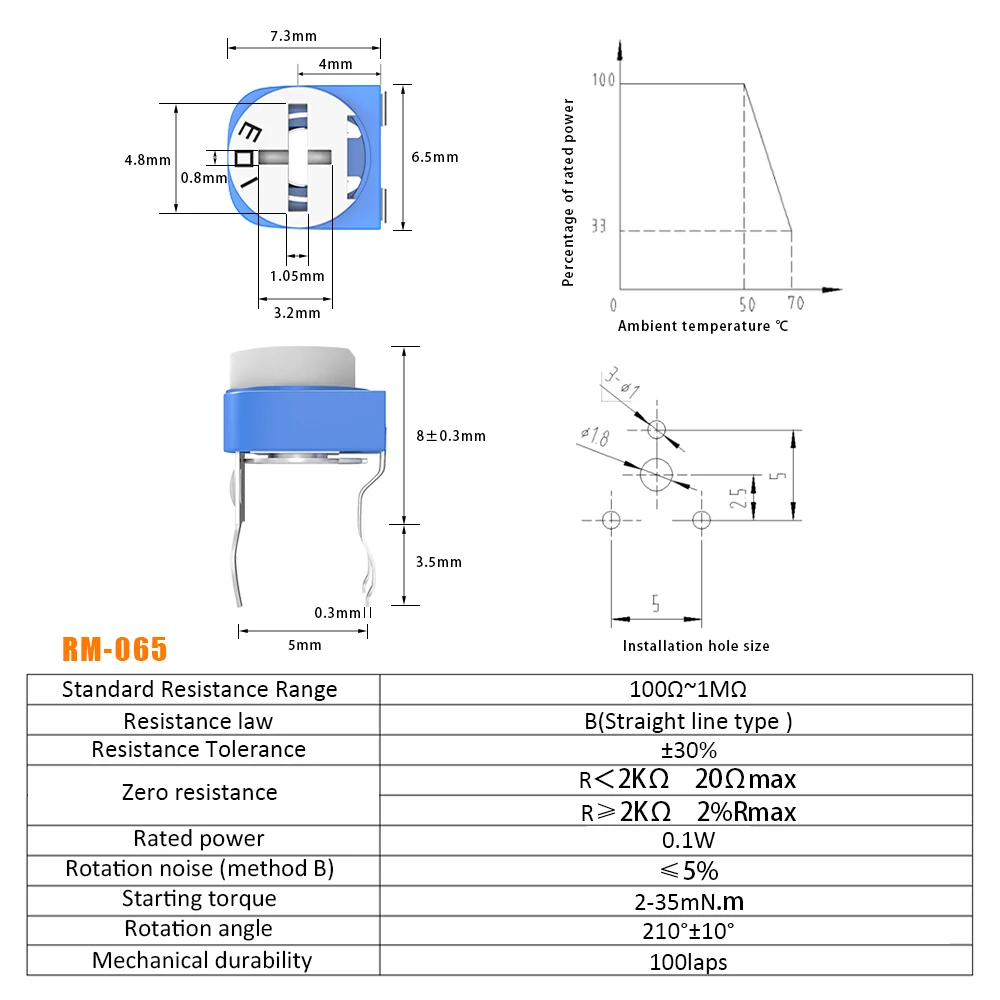

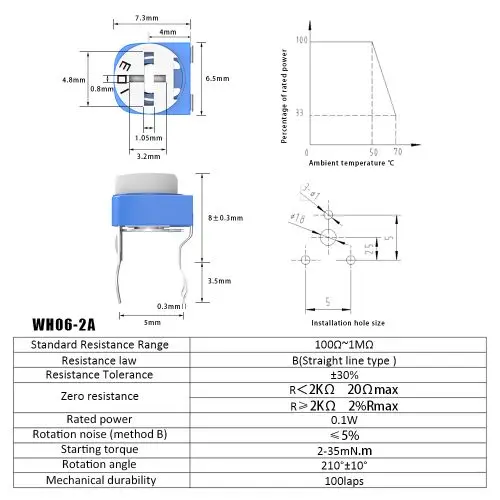

Specification:
Model number: RM065 WH06-2
Technology: Carbon Film
Resistance range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ
Resistance Tolerance: ± 30%
Rotation angle: 210 ° ± 10 °
Starting torque: 2-35mN.m
Mechanical strength: resistance film can withstand 1kg pressure does not break
Resistance change characteristics: B
Maximum use voltage: 50V
Rate Power: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω
Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%
Load life: load rated power 3 hours, the maximum resistance change of ± 5%

10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor10PCS RM065 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm RM-065 Trimpot Trimmer Potentiometer Variable Resistor

Additional information

Weight 1 kg
Dimensions 1 cm
Brand Name

diymore
Resistance Tolerance

±30%
Condition

New
Origin

Mainland China
Max. Operating Voltage

50V
High-concerned chemical

None
Rated Power

0.1W
Technology

Carbon Film
Type

Trimming Potentiometer
Operating Temperature

Please Check Description
Size

3PIN
is_customized

Yes
